PT40R-2003-IOL-H1141/X Pressure Transmitter, IO-Link with Two Switching Outputs

PT40R-2003-IOL-H1141/X

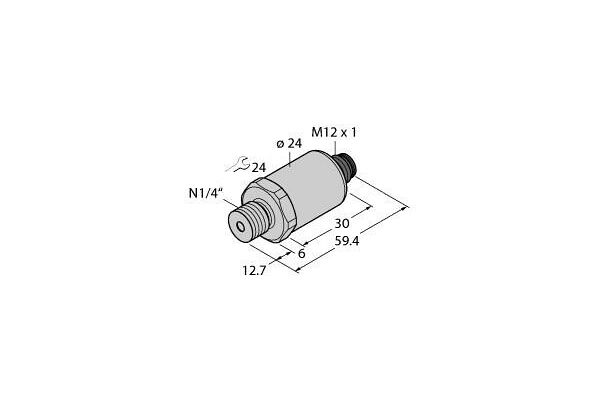

Pressure Transmitter, IO-Link with Two Switching Outputs, Operating voltage 18…33 VDC, Fully welded metal measuring cell, Pressure range 0…40 bar rel., Pressure peak orifice, 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection 1/4"-18 NPT male thread, Plug-in device, M12 × 1

  • SKU
    4047101529807
  • Manufacturer code
    100022253
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    40 - 40 bar
  • End setting
    40000 - 40000 hPa
  • Max. test pressure
    120 bar
  • Bursting pressure
    240 bar
  • Medium temperature
    -40 - 135 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    4000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Type of switch function
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-55976-2adc4e1a199927f2c8936a38806e26cc.pdf (PDF, 225.75 kB)
