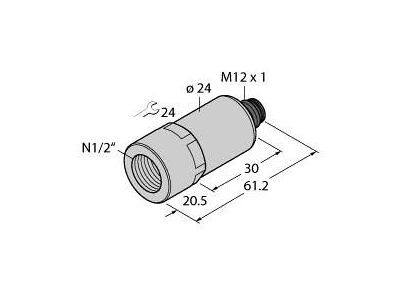

PT10R-2017-IOL-H1141/X Pressure Transmitter, IO-Link with Two Switching Outputs

PT10R-2017-IOL-H1141/X

Pressure Transmitter, IO-Link with Two Switching Outputs, Operating voltage 18…33 VDC, Fully welded metal measuring cell, Pressure range 0…10 bar rel., Pressure peak orifice, 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection 1/2"-14 NPT female thread, Plug-in device, M12 × 1

  • SKU
    4047101600599
  • Manufacturer code
    100040340
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    10 - 10 bar
  • End setting
    10000 - 10000 hPa
  • Max. test pressure
    30 bar
  • Bursting pressure
    60 bar
  • Medium temperature
    -40 - 135 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    1000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    female
  • Type of switch function
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-33734-41564faaf3bd41512f5699fc985e6c11.pdf (PDF, 225.58 kB)
