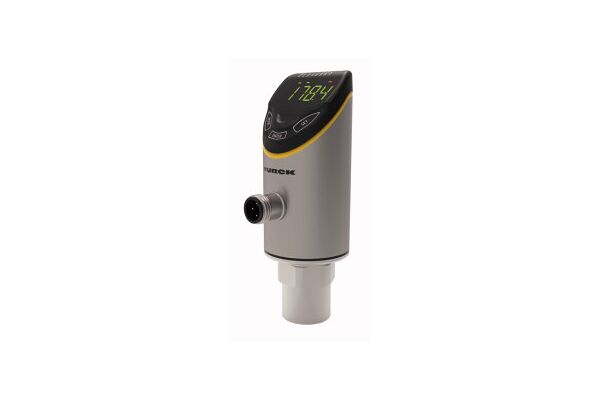

PS510-250-01-2UPN8-H1141/X Pressure Sensor, Relative Pressure: 0…250  Bar

PS510-250-01-2UPN8-H1141/X

Pressure Sensor, Relative Pressure: 0…250  Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, Peak pressure aperture, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Process connection G1/4" female thread, Plug-in device, M12 × 1

  • SKU
    4047101554717
  • Manufacturer code
    100001731
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    250 - 250 bar
  • End setting
    250000 - 250000 hPa
  • Max. test pressure
    750 bar
  • Bursting pressure
    1000 bar
  • Medium temperature
    -30 - 80 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    25000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP66
  • Connector gender
    female
  • NO/NC
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-45704-a53c6222382925fdf492b1b1d1108b72.pdf (PDF, 866.32 kB)
