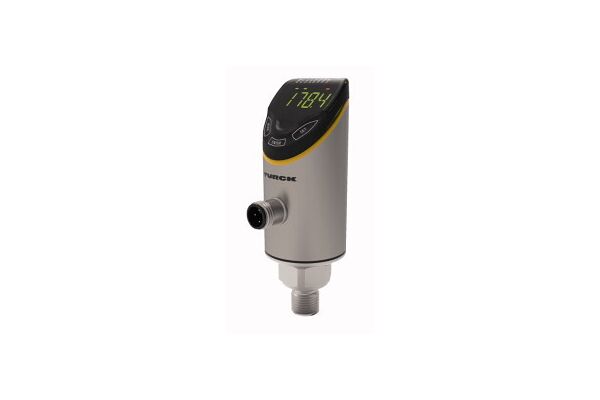

Pressure Sensor, Relative Pressure: 0…100 Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, Peak pressure aperture, 18…33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link, Process connection G1/4" male thread, Plug-in device, M12 × 1

SKU

4047101541571
Manufacturer code

100028686
Engaging pressure

0 - 0 bar
Initial setting

0 - 0 hPa
Switch off pressure

100 - 100 bar
End setting

100000 - 100000 hPa
Max. test pressure

300 bar
Bursting pressure

400 bar
Medium temperature

-30 - 80 °C
Rated voltage Ue at DC

18 - 33 V
Initial value measuring range pressure

0 Pa
End value measuring range pressure

10000000 Pa
Type of electric connection

Other
Adjustable current range

4 - 20 A
Degree of protection (IP)

IP66
Connector gender

male
NO/NC

NO/NC contacts
Type of switching output

PNP/NPN
Network protocol

IO-link
Rotatable

yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
