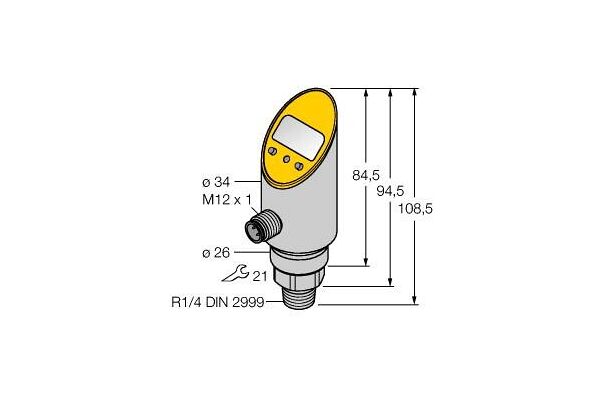

PS010V-310-2UPN8X-H1141 Pressure sensor, 2 PNP/NPN Transistor Switching Outputs

PS010V-310-2UPN8X-H1141

Pressure sensor, 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Rigid process connection, non-rotatable body, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…10 bar rel.

  • SKU
    4047101205237
  • Manufacturer code
    6833520
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    10 - 10 bar
  • End setting
    10000 - 10000 hPa
  • Max. test pressure
    50 bar
  • Bursting pressure
    50 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    1000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-38164-8c2fe34b5b2f4b91a15621f2ebca36f2.pdf (PDF, 333.76 kB)
