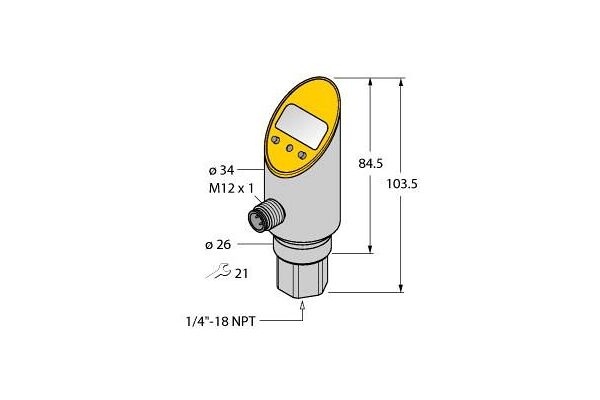

PS003V-302-2UPN8X-H1141 Pressure sensor, 2 PNP/NPN Transistor Switching Outputs

PS003V-302-2UPN8X-H1141

Pressure sensor, 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Rigid process connection, non-rotatable body, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range -1…2.5 bar rel.

  • SKU
    4047101204148
  • Manufacturer code
    6833351
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    2.5 - 2.5 bar
  • End setting
    2500 - 2500 hPa
  • Max. test pressure
    12 bar
  • Bursting pressure
    12 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    250000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-39792-32d1092c25b0e5b4520cfd8aa9cba738.pdf (PDF, 326.78 kB)
