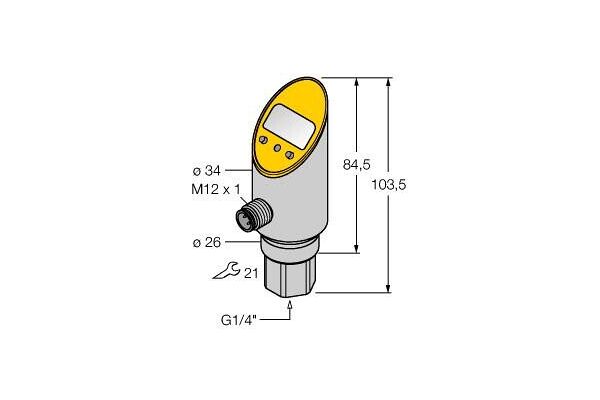

PS400R-301-2UPN8X-H1141 Pressure sensor, 2 PNP/NPN Transistor Switching Outputs

PS400R-301-2UPN8X-H1141

Pressure sensor, 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Rigid process connection, non-rotatable body, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range 0…400 bar rel.

  • SKU
    4047101203851
  • Manufacturer code
    6833322
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    400 - 400 bar
  • End setting
    400000 - 400000 hPa
  • Max. test pressure
    700 bar
  • Bursting pressure
    700 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    40000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Manufacturer Turck
