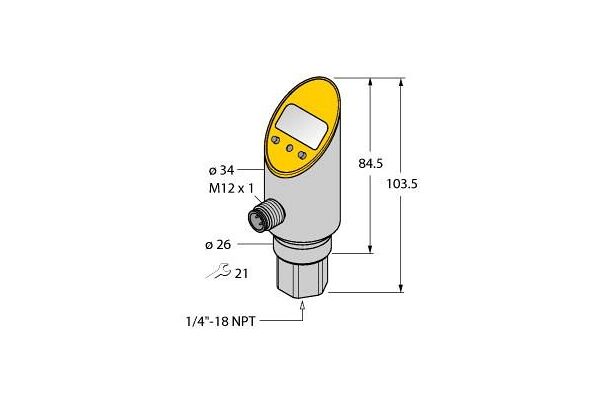

PS250R-302-2UPN8X-H1141 Pressure sensor, 2 PNP/NPN Transistor Switching Outputs

PS250R-302-2UPN8X-H1141

Pressure sensor, 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Rigid process connection, non-rotatable body, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range 0…250 bar rel.

  • SKU
    4047101204209
  • Manufacturer code
    6833357
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    250 - 250 bar
  • End setting
    250000 - 250000 hPa
  • Max. test pressure
    500 bar
  • Bursting pressure
    500 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    25000000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
