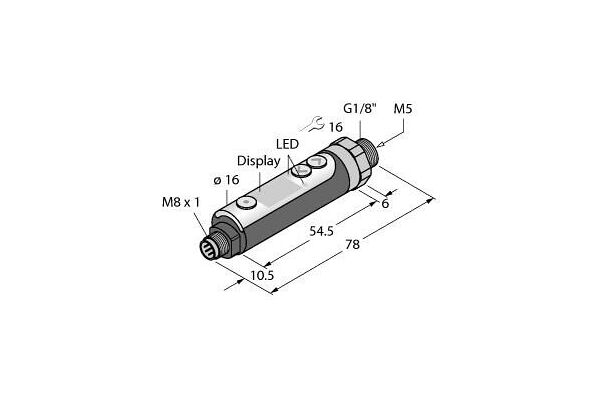

PK01VR-P13-2UP8X-V1141 Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs

PK01VR-P13-2UP8X-V1141

Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs, Operating voltage 10.8…30 VDC, Compact design, For pressure and vacuum monitoring, Rotatable sensor body, Display rotatable by 360°, Excellent EMC properties, 2 × PNP outputs, IO-Link, Pressure range -1…0 bar rel.

  • SKU
    4047101544695
  • Manufacturer code
    6833004
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    0 - 0 bar
  • End setting
    0 - 0 hPa
  • Max. test pressure
    2 bar
  • Medium temperature
    0 - 60 °C
  • Rated voltage Ue at DC
    10.8 - 30 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    0 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP65
  • Switching output
    PNP
  • Rotatable
    yes
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-50501-5562e3c5b5e250b8d47d86bc297d45ec.pdf (PDF, 215.92 kB)
