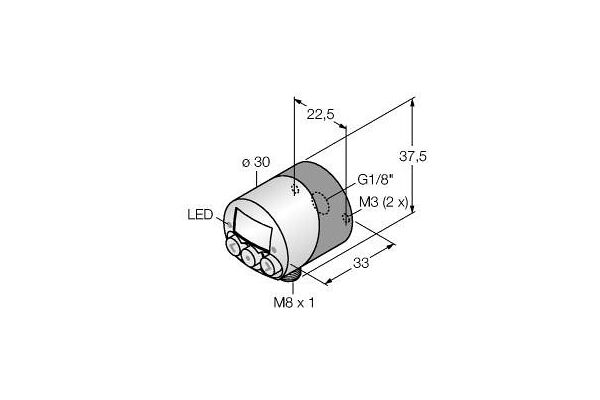

PK012R-N12AL-2UP8X-V1141 Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs

PK012R-N12AL-2UP8X-V1141

Pressure Sensor, IO-Link with 2 PNP Transistor Switching Outputs, Operating voltage 10.8…30 VDC, Compact design, For pressure and vacuum monitoring, Display rotatable by 360°, Excellent EMC properties, 2 × PNP outputs, IO-Link, Pressure range 0…12 bar rel.

  • SKU
    4047101604832
  • Manufacturer code
    100042115
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    12 - 12 bar
  • End setting
    12000 - 12000 hPa
  • Max. test pressure
    15 bar
  • Medium temperature
    0 - 60 °C
  • Rated voltage Ue at DC
    10.8 - 30 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    1200000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP65
  • Switching output
    PNP
  • Rotatable
    yes
  • Network protocol
    IO-link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
