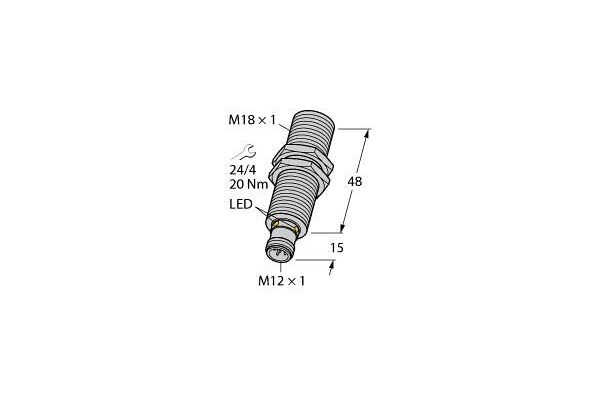

RU40U-M18M-LFX-H1151 Ultrasonic Sensor, Diffuse Mode Sensor

RU40U-M18M-LFX-H1151

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Temperature compensation, Blind zone: 2.5 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, Frequency output 240…1600 Hz (60…400 Hz), Frequency range selectable via FS control line (see functional principle)

  • SKU
    4047101346107
  • Manufacturer code
    1610021
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    Other
  • Length of sensor
    63 mm
  • Setting procedure
    Other
  • Measuring range length
    25 - 400 mm
  • Construction type housing
    Cylinder, screw-thread
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    15 - 30 V
  • Relative repeat accuracy
    0.15 %
  • Switching frequency
    10.4 Hz
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Type of analogy output
    Other
  • Diameter sensor
    18 mm
  • Relative linearity deflection
    0.5 %
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-36614-04afb12b54934171f666f367f024774e.pdf (PDF, 443.71 kB)
