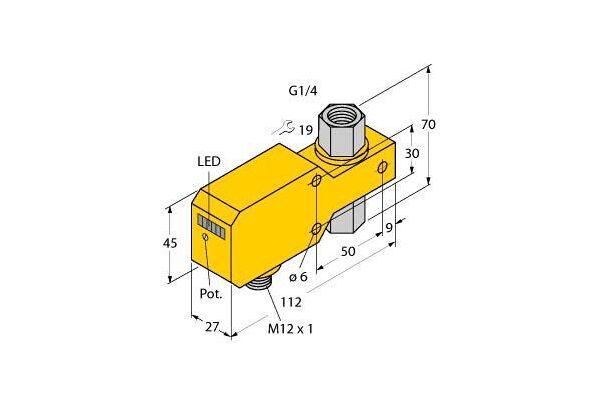

FCI-D06CTP-ARX-H1140 Flow Monitoring, Inline Sensor with Integrated Processor

FCI-D06CTP-ARX-H1140

Flow Monitoring, Inline Sensor with Integrated Processor, Operating voltage 21.6…26.4 VDC, Inline sensor, Flow sensor for liquid media, Calorimetric principle, Adjustment via potentiometer, LED band, Operating range 0.02…3 l/min, Sensor material ceramics/plastic, Seal made of FKM, DC 4-wire, 21.6…26.4 VDC, NO contact, relay output, Plug-in device, M12 x 1

  • SKU
    4047101174441
  • Manufacturer code
    6870625
  • Measurement principle
    Thermal
  • Type of process connection
    Thread connection
  • Compressive strength measuring head
    5 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    0 - 60 °C
  • Rated control supply voltage Us at DC
    21.6 - 26.4 V
  • Voltage type for actuating
    DC
  • Type of switch function
    NO contact
  • Manufacturer Turck
