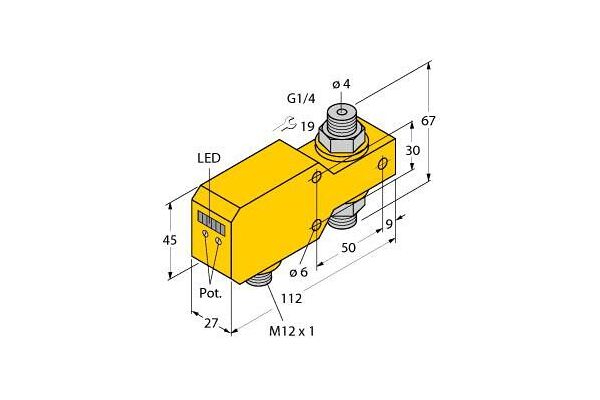

FCI-D04A4P-LIX-H1141 Flow Monitoring, Inline Sensor with Integrated Processor

FCI-D04A4P-LIX-H1141

Flow Monitoring, Inline Sensor with Integrated Processor, Operating voltage 21.6…26.4 VDC, Inline sensor, Flow sensor for liquid media, Calorimetric principle, Adjustment via potentiometer, LED band, Operating range 0.01…1 l/min, DC 3-wire, 21.6…26.4 VDC, 4…20 mA analog output, Connector device, M12 × 1

  • SKU
    4047101174601
  • Manufacturer code
    6870641
  • Measurement principle
    Thermal
  • Type of process connection
    Thread connection
  • Compressive strength measuring head
    20 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    0 - 60 °C
  • Rated control supply voltage Us at DC
    21.6 - 26.4 V
  • Voltage type for actuating
    DC
  • Manufacturer Turck

Product attachments

file-35672-9bd37bddecd122d49c5022e607d32fa8.pdf (PDF, 171.5 kB)
