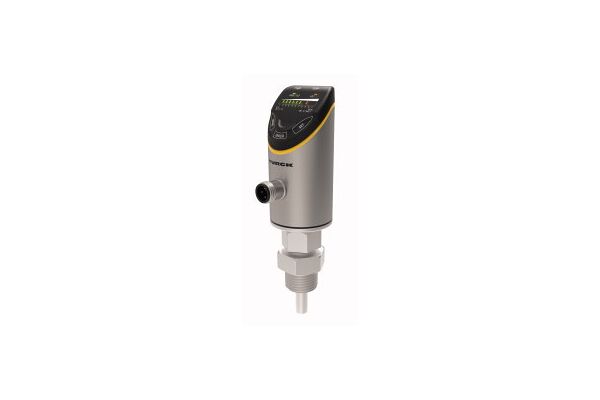

FS100-300L-30-2LI-H1141 Flow Sensor

FS100-300L-30-2LI-H1141

Flow Sensor, Operating voltage 17…33 VDC, Immersion sensor, Screw-in adapter with process connection G1/2 inch male thread included in delivery, M18 × 1.5 female to G1/2 inch male thread, Electronics housing material/contact with medium 1.4404 (316L)/1.4571 (316Ti), Immersion depth 16.9 mm, Process value display with bar graph, Flow monitoring for liquid media, Protection classes IP66, IP67 and IP69K, Adjustment of flow speed via teach function, 17…33 VDC, Analog output 4…20 mA, M12 × 1 male connector

  • SKU
    4047101446920
  • Manufacturer code
    100001034
  • Type of process connection
    Thread connection
  • Compressive strength measuring head
    300 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    -40 - 85 °C
  • Rated control supply voltage Us at DC
    17 - 33 V
  • Connector gender
    male - female
  • Manufacturer Turck

Product attachments

file-35607-1726068cfdea73d052d86a303c7b5076.pdf (PDF, 1.14 MB)
