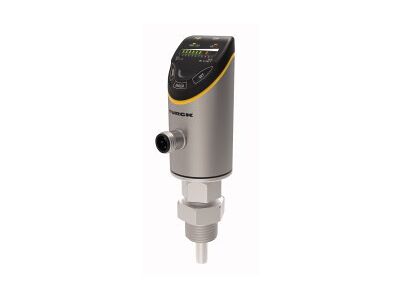

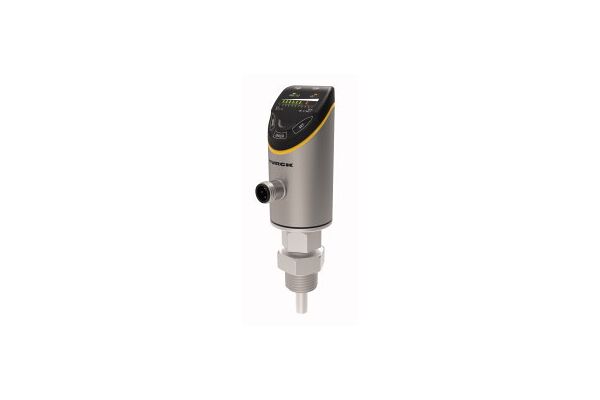

FS100-300L-61-2UPN8-H1141 Flow Sensor

FS100-300L-61-2UPN8-H1141

Flow Sensor, Operating voltage 10…33 VDC, Immersion sensor, Screw-in adapter with process connection G1/2 inch male thread included in delivery, Electronics housing material/contact with medium 1.4404 (316L)/1.4571 (316Ti), Immersion depth 52.9 mm, Process value display with bar graph, Flow monitoring for liquid media, Protection classes IP66, IP67 and IP69K, Adjustment of flow speed via teach function, 10…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Connector, M12 × 1

  • SKU
    4047101540628
  • Manufacturer code
    100028426
  • Type of process connection
    Thread connection
  • Compressive strength measuring head
    300 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    -40 - 85 °C
  • Rated control supply voltage Us at DC
    10 - 33 V
  • Type of switch function
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Connector gender
    male
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-33452-3da331d4d174ba93b8e551bed34feed2.pdf (PDF, 1.15 MB)
