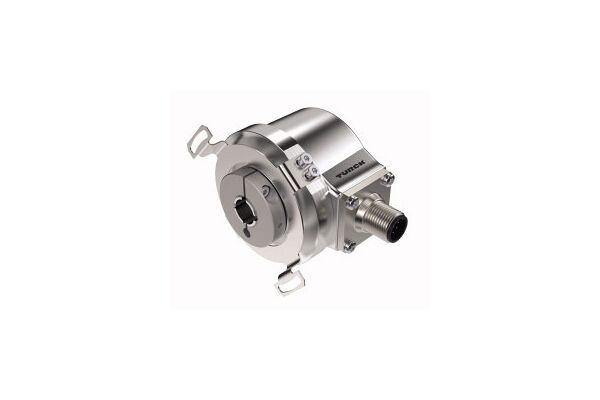

REI-12H10E-2B1000-H1181 Incremental Encoder, Industrial Line

REI-12H10E-2B1000-H1181

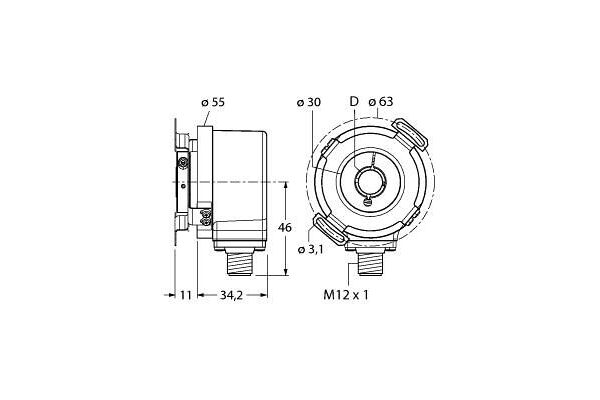

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 1000 ppr, Flange with stator coupling, Ø 63 mm, Hollow shaft, Ø 10 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 1000 pulses per revolution

  • SKU
    4047101551105
  • Manufacturer code
    100010467
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1000
  • Diameter axle
    10 - 10 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-53759-6b1b51d5d30582b973289b87938fcaff.pdf (PDF, 1016.72 kB)
