REI-E-111T6C-2B1000-C Incremental Encoder, Efficiency Line

REI-E-111T6C-2B1000-C

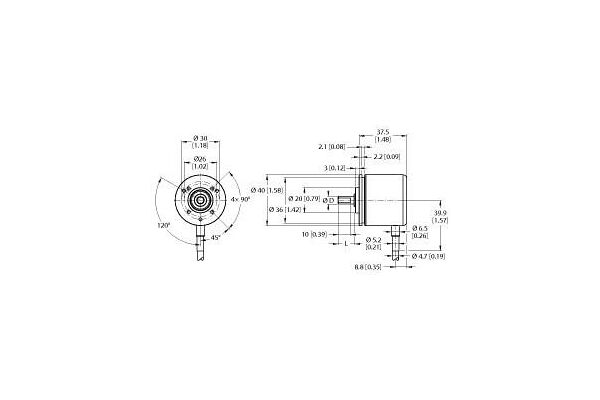

Incremental Encoder, Efficiency Line, Operating voltage 10…30 VDC, Resolution incremental 1000 ppr, Synchro/clamping flange, Ø 40 mm, Solid shaft, Ø 6 mm × 12.5 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm, 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, Cable connection, 1000 pulses per revolution

  • Manufacturer code
    100011946
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of electric connection
    Cable
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1000
  • Diameter axle
    6 - 6 mm
  • Housing material
    Aluminium
  • Degree of protection (IP)
    IP64
  • Manufacturer Turck

Product attachments

file-43373-2df4d5a0775d126bc2ed4db3ee406f92.pdf (PDF, 755.81 kB)
