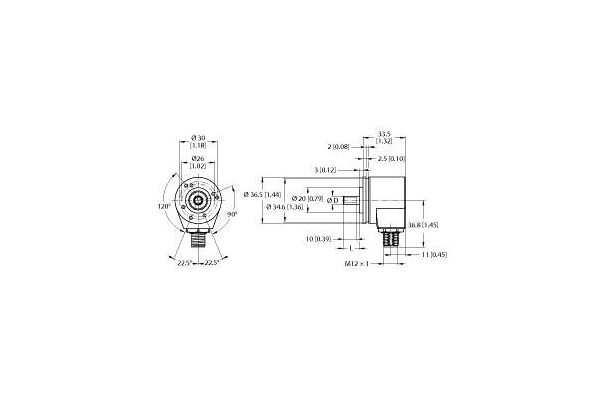

REI-04QA0C-4A500-H1181 Incremental Encoder, Industrial Line

REI-04QA0C-4A500-H1181

Incremental Encoder, Industrial Line, Resolution incremental 500 ppr, Clamping flange, Ø 36.5 mm, Solid shaft with flat, Ø ¼" × 12.5 mm, Optical measuring principle, Shaft material: stainless steel, Protection class shaft IP50, Protection class housing IP65, -20…+85 °C, Max. 12000 rpm, 5 VDC, RS422/TTL invertible, Pulse frequency max. 200 kHz, M12 × 1 male connector, 8-pin, 500 pulses per revolution

  • SKU
    4047101550252
  • Manufacturer code
    100011157
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    200
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    RS-422
  • Impulse rate per cycle
    500
  • Diameter axle
    6.35 - 6.35 mm
  • Housing material
    Aluminium
  • Degree of protection (IP)
    IP65
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-51200-02ce4d9d74394a1e724695856ff8e83d.pdf (PDF, 233.54 kB)
