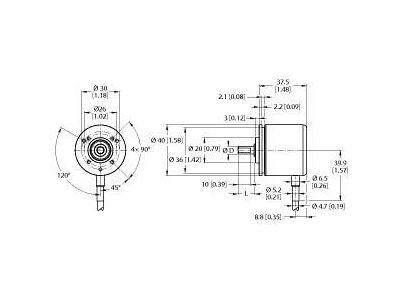

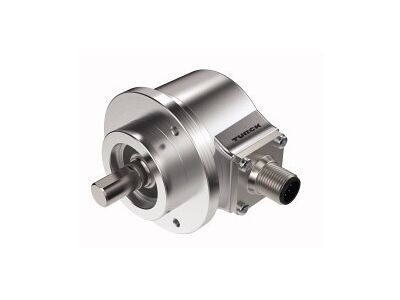

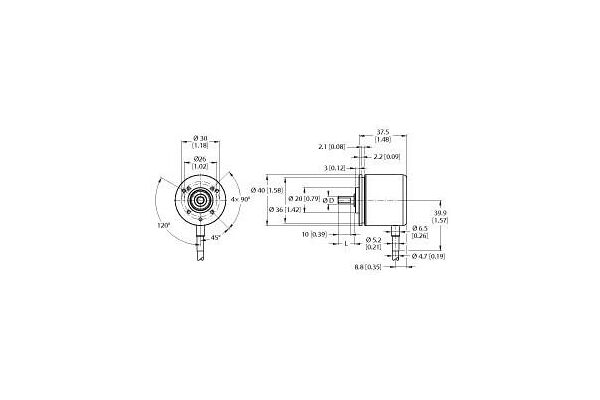

Incremental Encoder, Efficiency Line, Resolution incremental 500 ppr, Synchro/clamping flange, Ø 40 mm, Solid shaft, Ø 6 mm × 12.5 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm, 5 VDC, RS422/TTL invertible, Pulse frequency max. 300 kHz, Cable connection, 500 pulses per revolution

Manufacturer code

100011976
Model

Incremental encoder
Physical measurement principle

Optic
Max. pulses per revolution

300
Type of electric connection

Cable
Impulse rate per cycle

500
Diameter axle

6 - 6 mm
Housing material

Aluminium
Degree of protection (IP)

IP64

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
