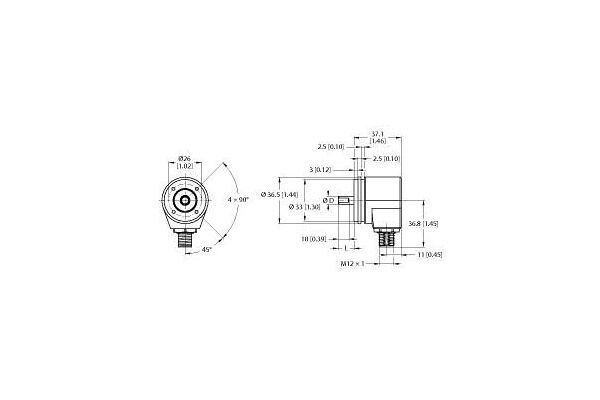

REI-04Q6S-2H1024-H1181 Incremental Encoder, Industrial Line

REI-04Q6S-2H1024-H1181

Incremental Encoder, Industrial Line, Operating voltage 8…30 VDC, Resolution incremental 1024 ppr, Synchro flange, Ø 36.5 mm, Solid shaft with flat, Ø 6 mm x 12.5 mm, Optical measuring principle, Shaft material: stainless steel, Protection class shaft IP50, Protection class housing IP65, -20…+85 °C, Max. 12000 rpm, 8…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 200 kHz, M12 × 1 male connector, 8-pin, 1024 pulses per revolution

  • SKU
    4047101550191
  • Manufacturer code
    100011163
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    200
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1024
  • Diameter axle
    6 - 6 mm
  • Housing material
    Aluminium
  • Degree of protection (IP)
    IP65
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-49861-68b1b122c4db637765a281d3dbee86e6.pdf (PDF, 288.54 kB)
