REI-05I8T-2H1024-H1181 Incremental Encoder, Industrial Line

REI-05I8T-2H1024-H1181

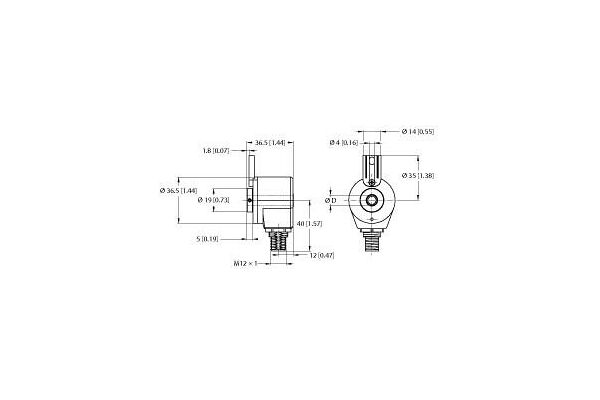

Incremental Encoder, Industrial Line, Operating voltage 8…30 VDC, Resolution incremental 1024 ppr, Flange with mounting element, Ø 36.5 mm, Hollow shaft, Ø 8 mm, Optical measuring principle, Shaft material: Brass, Protection class shaft IP50, Protection class housing IP65, -20…+85 °C, Max. 6000 rpm, 8…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 200 kHz, M12 × 1 male connector, 8-pin, 1024 pulses per revolution

  • SKU
    4047101550047
  • Manufacturer code
    100011178
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    200
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1024
  • Diameter axle
    8 - 8 mm
  • Housing material
    Aluminium
  • Degree of protection (IP)
    IP65
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-31245-89fba6b0e269f8f6a37ef7f954b07c9d.pdf (PDF, 307.03 kB)
