REI-43H38S-2B1500-H1181 Incremental Encoder, Industrial Line

REI-43H38S-2B1500-H1181

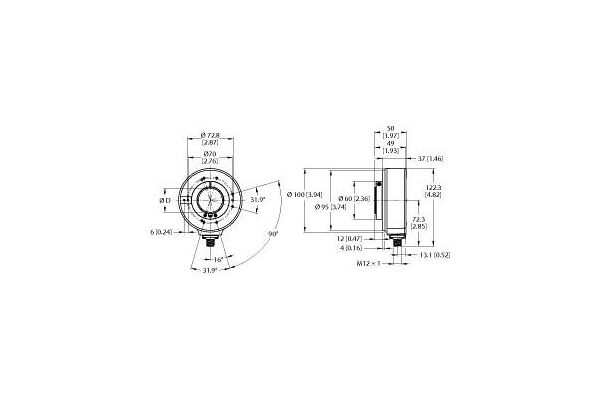

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 1500 ppr, Flange without mounting element, Ø 100 mm, Hollow shaft, Ø 38 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on housing and shaft side, ‐40 … +80 °C, Max. 6000 rpm (at 60 °C: 2500 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 1500 pulses per revolution

  • SKU
    4047101547580
  • Manufacturer code
    100011437
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of shaft encoder
    Hollow shaft
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1500
  • Diameter axle
    38 - 38 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP65
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-48382-f0a9160e913f73e5dc92696810533b89.pdf (PDF, 556.14 kB)
