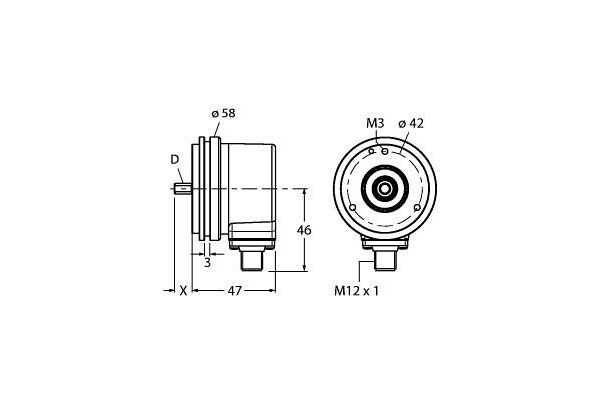

RI-10S10S-2B2500-H1181 Incremental Encoder, Industrial Line

RI-10S10S-2B2500-H1181

Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 2500 ppr, Synchro flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 2500 pulses per revolution

  • SKU
    4047101268393
  • Manufacturer code
    1545215
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    2500
  • Diameter axle
    10 - 10 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP67
  • Connector gender
    male
  • Manufacturer Turck
