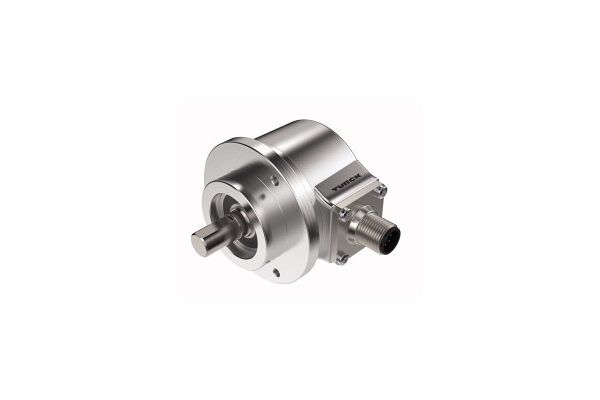

REI-E-113T8C-2B1024-H1181 Incremental Encoder, Efficiency Line

REI-E-113T8C-2B1024-H1181

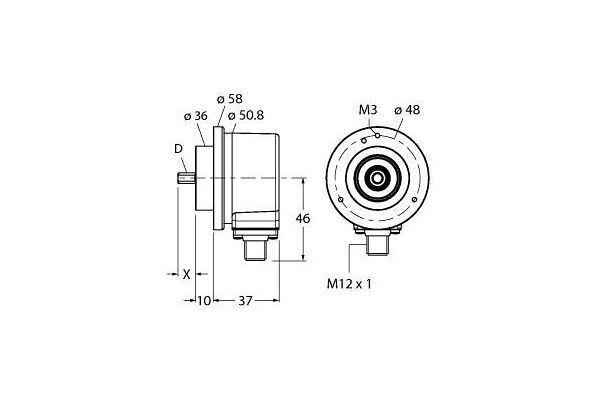

Incremental Encoder, Efficiency Line, Operating voltage 10…30 VDC, Resolution incremental 1024 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 8 mm × 15 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 1024 pulses per revolution

  • SKU
    4047101546842
  • Manufacturer code
    100011540
  • Model
    Incremental encoder
  • Physical measurement principle
    Optic
  • Max. pulses per revolution
    300
  • Type of electric connection
    Plug-in connection
  • Standard for interfaces
    Other
  • Impulse rate per cycle
    1024
  • Diameter axle
    8 - 8 mm
  • Housing material
    Other
  • Degree of protection (IP)
    IP64
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-35158-e45712d2000d1c8cfd75c3c02ebc8d6b.pdf (PDF, 1.02 MB)
