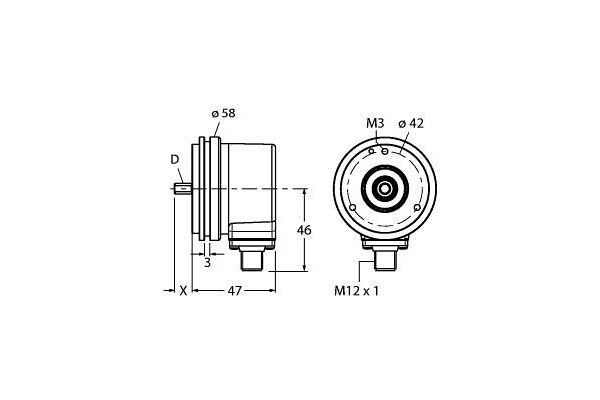

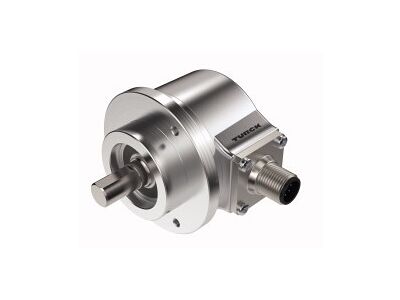

Incremental Encoder, Efficiency Line, Operating voltage 10…30 VDC, Resolution incremental 1024 ppr, Synchro flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Push-pull/HTL invertible, Pulse frequency max. 300 kHz, M12 × 1 male connector, 8-pin, 1024 pulses per revolution

SKU

4047101546682
Manufacturer code

100011567
Model

Incremental encoder
Physical measurement principle

Optic
Max. pulses per revolution

300
Type of electric connection

Plug-in connection
Standard for interfaces

Other
Impulse rate per cycle

1024
Diameter axle

10 - 10 mm
Housing material

Other
Degree of protection (IP)

IP64
Connector gender

male

Manufacturer Turck
