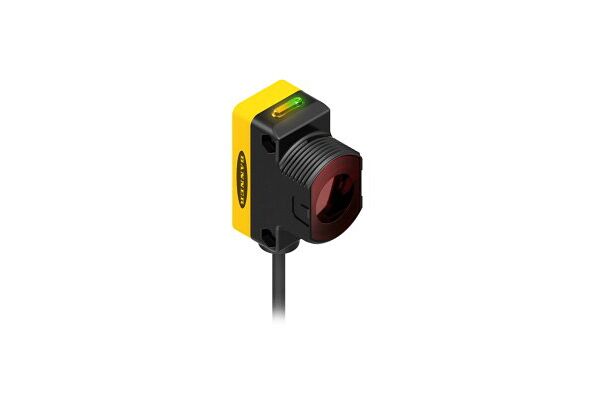

QS30RQPMA Photoelectric Sensor, Opposed Mode Sensor (Emitter)

QS30RQPMA

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Operating voltage 10…30 VDC, Max. range 60000 mm, Cable length 0.15 m, Cable with male end M12 × 1, 5-pin, PUR, 150 mm, Protection class IP67, LED all-round visible, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488730802
  • Manufacturer code
    3073080
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

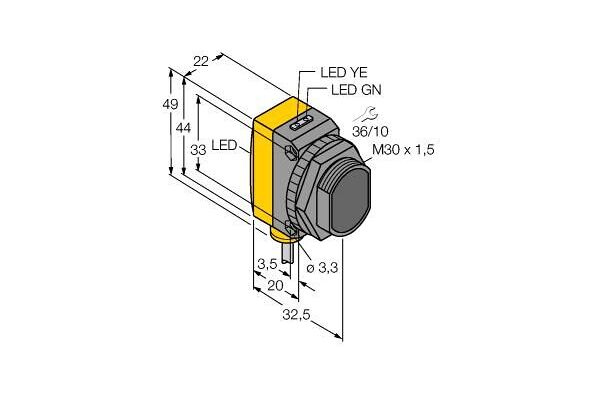

  • Width sensor
    22 mm
  • Height of sensor
    49 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    5 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    60000 mm
  • Max. switching distance
    60000 mm
  • Wavelength of the sensor
    875 nm
  • Type of light
    Infrared light
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyurethane (PUR)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
