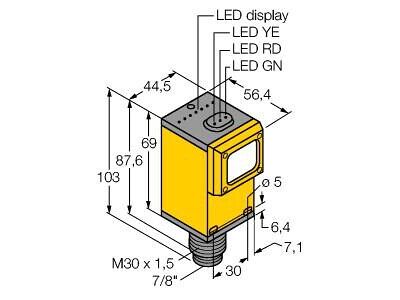

Q45BB6RQ5 Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Q45BB6RQ5

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 10…30 VDC, Max. range 60000 mm, Male M12 × 1, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation, adjusted via switch

  • SKU
    0662488386603
  • Manufacturer code
    3038660
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    44.5 mm
  • Height of sensor
    102.6 mm
  • Length of sensor
    56.4 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    60000 mm
  • Max. switching distance
    60000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-34373-3aa761ff21cfa3ad2d9ccb71236f055c.pdf (PDF, 442.42 kB)
