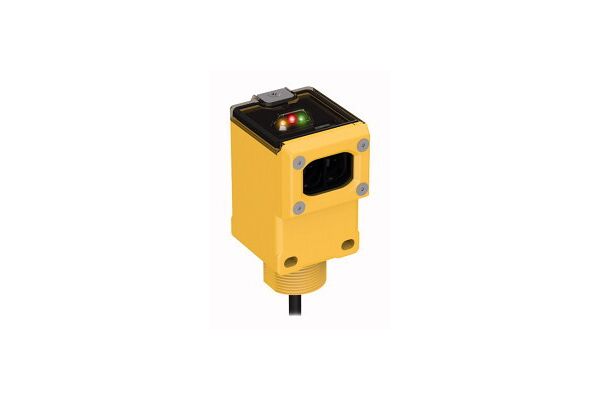

Q45BW22R W/30 Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Q45BW22R W/30

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 90…250 VAC, Max. range 60000 mm, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 90…250 VAC, Relay output, NO (SPST), Light or dark operation, adjusted via selector switch

  • SKU
    0662488384821
  • Manufacturer code
    3038482
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    56.4 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    2 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    60000 mm
  • Max. switching distance
    60000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50177-04737081eafd23c535833cedf9e26266.pdf (PDF, 944.36 kB)
