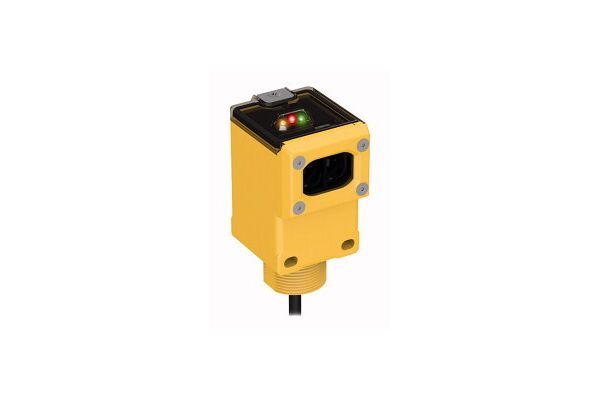

Q45BW22F W/30 Photoelectric Sensor, Photoelectric Sensor for Glass Fibers

Q45BW22F W/30

Photoelectric Sensor, Photoelectric Sensor for Glass Fibers, Operating voltage 90…250 VAC, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 90…250 VAC, Relay output, NO (SPST), Light or dark operation, adjusted via selector switch

  • SKU
    0662488384838
  • Manufacturer code
    3038483
  • Type of electric connection
    Cable
  • Degree of protection (IP)
    IP67
  • Type of switching output
    Relay contact
  • Construction type housing
    Cuboid
  • Type of light
    Infrared light
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Type of switch function
    Normally open contact (NO)
  • Ambient temperature
    -40 - 70 °C
  • Housing material
    Plastic

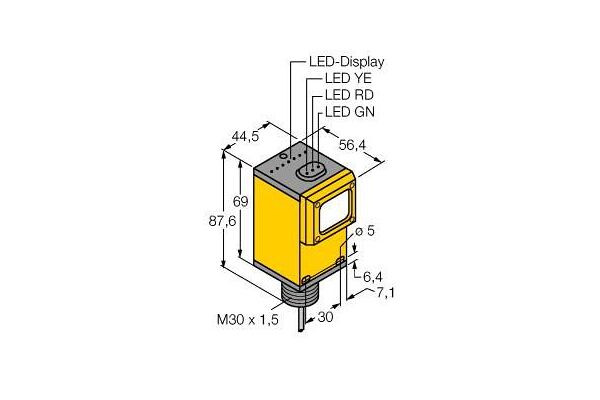

  • Width amplifier
    44.5
  • Height amplifier
    87.6
  • Length amplifier
    56.4
  • No-load current
    50
  • Sensing mode
    Light switching
    Dark switching
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-51219-f6d21c0da5ee2daa225f36f7ef513fd0.pdf (PDF, 964.15 kB)
