Q45VR3R Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Q45VR3R

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 24…250 VAC / 12…250 VDC, Max. range 60000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output, changeover (SPDT), Light or dark operation, adjusted via selector switch

  • SKU
    0662488539825
  • Manufacturer code
    3053982
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

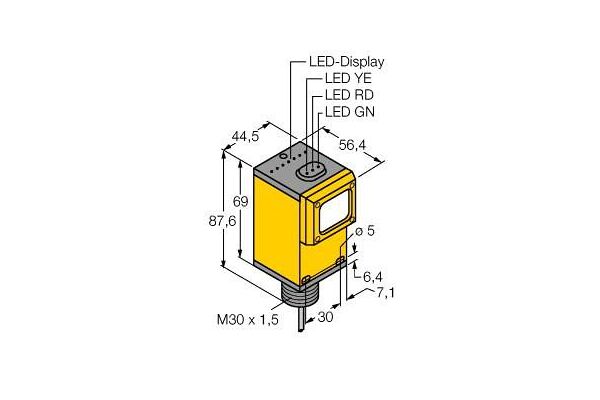

  • Width sensor
    56.4 mm
  • Height of sensor
    44.5 mm
  • Length of sensor
    87.6 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Other
  • Ambient temperature
    -40 - 70 °C
  • Response time
    15 s
  • Switching frequency
    33 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    60000 mm
  • Max. switching distance
    60000 mm
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37328-a18afe75f63ccb546b146458ddd98204.pdf (PDF, 958.3 kB)
