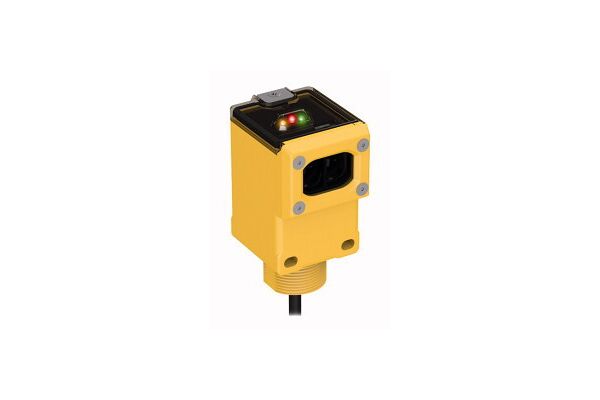

Q45VR3LV W/30' Photoelectric Sensor, Retroreflective Sensor

Q45VR3LV W/30'

Photoelectric Sensor, Retroreflective Sensor, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 9000 mm, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output, changeover (SPDT), Light or dark operation, adjusted via selector switch

  • SKU
    0662488608897
  • Manufacturer code
    3060889
  • Rated switching distance
    9000 mm
  • Max. switching distance
    9000 mm
  • With reflector
    true
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    56.4 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -25 - 55 °C
  • Response time
    15 s
  • Switching frequency
    33 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-46006-8eebd5dbc9414aaeff132154debe2f8c.pdf (PDF, 1 MB)
