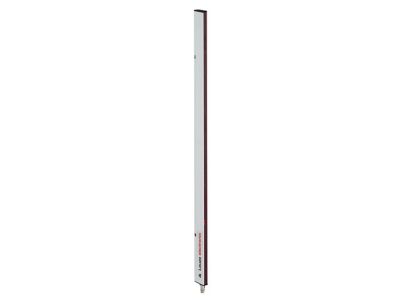

CSL505-R100-1500-M8

This light curtain receiver is designed for precise object detection, featuring various scanning modes and reliable digital outputs.

SKU

2110-50131360
Manufacturer code

50131360
Number of semiconductor outputs with signalling function

2
Fade-out possible

false
Type of switching output of the OSSD

Other
Type of electric connection

Connector M8
Operation agent-safety class

Safety class 3
Width sensor

10 mm
Height of sensor

27 mm
Length of sensor

1580 mm
Detection capability for test bodies

102.5 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Ambient temperature

-30 - 50 °C
With muting function

false
Override possible

false
Resolution of the light curtain

102.5 mm
Reduced resolution

false
Operating range

5 m
Safety field height

1500 mm
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Scope of delivery of the one-way system

Receiver
Response time

1 s
Most suitable applications

Precise object detection
Beam spacing (mm)

100
Special version

Warning output
Parallel-beam scanning
Diagonal-beam scanning
Crossed-beam scanning
Teach input
Measurement field length (mm)

1500
Operating range (m)

0.3 ... 5

Manufacturer Leuze

Product attachments

DS_CSL505-R100-1500-M8_eng_50131360 (LINK)
