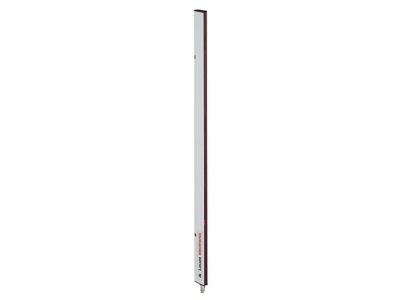

This light curtain transmitter is designed for precise object detection and offers various scanning options.

SKU

2110-50131648
Manufacturer code

50131648
Fade-out possible

false
Type of switching output of the OSSD

Other
Type of electric connection

Connector M8
Operation agent-safety class

Safety class 3
Width sensor

10 mm
Height of sensor

27 mm
Length of sensor

360 mm
Detection capability for test bodies

15 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Ambient temperature

-30 - 50 °C
With muting function

false
Override possible

false
Resolution of the light curtain

15 mm
Reduced resolution

false
Operating range

5 m
Safety field height

187.5 mm
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
Wavelength of the sensor

860 nm
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Scope of delivery of the one-way system

Transmitter
Most suitable applications

Precise object detection
Beam spacing (mm)

12.5
Special version

Parallel-beam scanning
Diagonal-beam scanning
Crossed-beam scanning
Measurement field length (mm)

1875
Operating range (m)

0.3 ... 5
