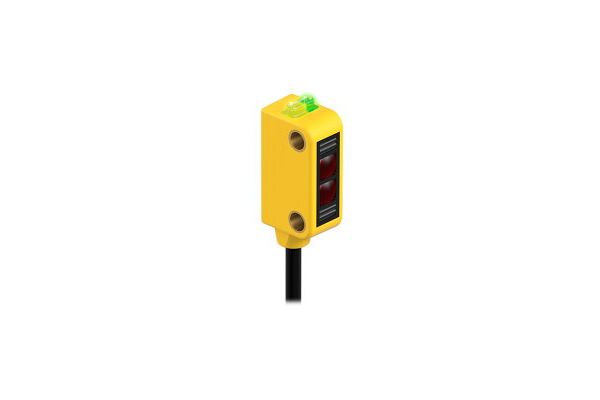

Q12AP6LPQ3 Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Miniature S

Q12AP6LPQ3

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Miniature Sensor, Operating voltage 10…30 VDC, Max. range 1000 mm, Cable length 0.15 m, Cable, PVC, 150 mm, with M8 × 1 male end, 3-pin, Protection class IP67, LED all-round visible, Indication of insufficient excess gain, Glass lens, Operating voltage: 10…30 VDC, PNP switching output, light operation

  • SKU
    0662488771133
  • Manufacturer code
    3077113
  • Rated switching distance
    1000 mm
  • Max. switching distance
    1000 mm
  • With reflector
    false
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    8 mm
  • Height of sensor
    26.6 mm
  • Length of sensor
    12.4 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Glass
  • Ambient temperature
    -20 - 55 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Wavelength of the sensor
    640 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
