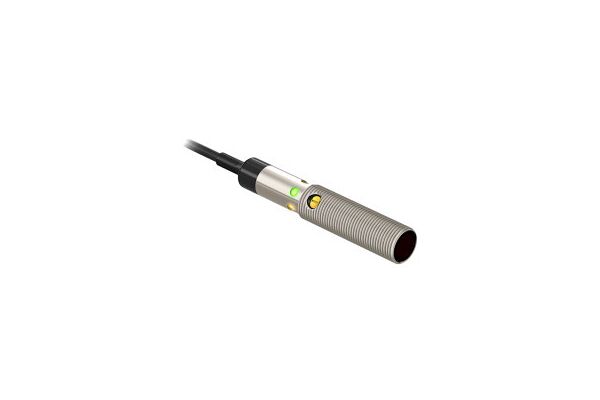

M12PLP Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

M12PLP

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 1500 mm, Cable length 2 m, Cable, PVC, 2 m, 4-wire, Protection classes IP67 / IP68, Metal housing, LED all-round visible, Indication of insufficient excess gain, Sensitivity adjustable via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, complementary contact

  • SKU
    0662488771829
  • Manufacturer code
    3077182
  • Rated switching distance
    1500 mm
  • Max. switching distance
    1500 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)

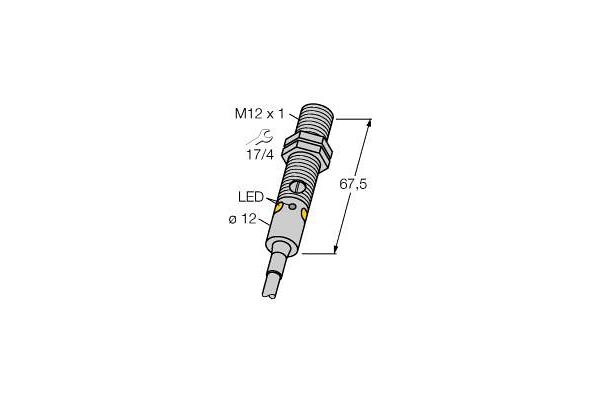

  • Length of sensor
    67.5 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Wavelength of the sensor
    660 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    12 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-40357-49172ffd0716e6eb668507d0643d4b5f.pdf (PDF, 369.1 kB)
