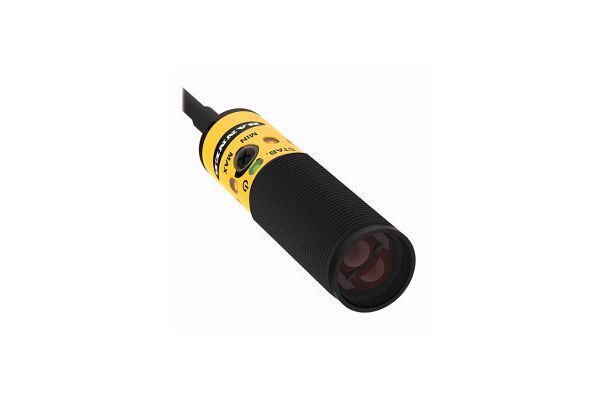

S18-2VPLPC-Q3 Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

S18-2VPLPC-Q3

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 6000 mm, Cable length 0.15 m, 150-mm cable with male connector, M8 × 1, 4-pin, Protection class IP67, Ambient temperature: -40…+70 °C, Sensitivity adjusted via potentiometer, Visible red LED light, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488865658
  • Manufacturer code
    3086565
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • With reflector
    false
  • Type of electric connection
    Connector M8
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Length of sensor
    88 mm
  • Ambient temperature
    -40 - 70 °C
  • Response time
    1.5 s
  • Wavelength of the sensor
    624 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-48608-26f4a46fdff2c8004d7a3e7720484241.pdf (PDF, 605.65 kB)
