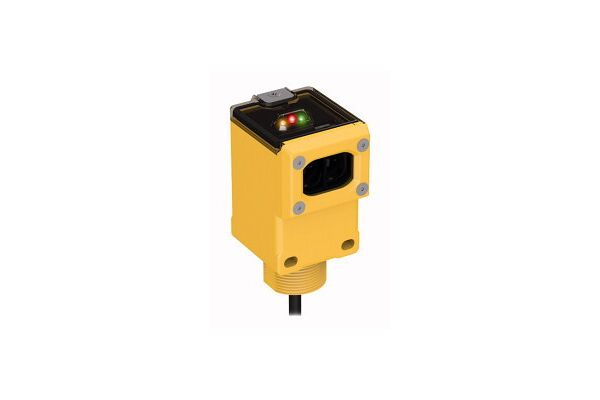

Q45BB6LLP Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Q45BB6LLP

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 40000 mm, Cable length 2 m, Retroreflective laser sensor with polarizing filter, Laser class 2, Reflector BRT-2X2 included in delivery, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation, adjusted via switch

  • SKU
    0662488395513
  • Manufacturer code
    3039551
  • Rated switching distance
    40000 mm
  • Max. switching distance
    40000 mm
  • With reflector
    true
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

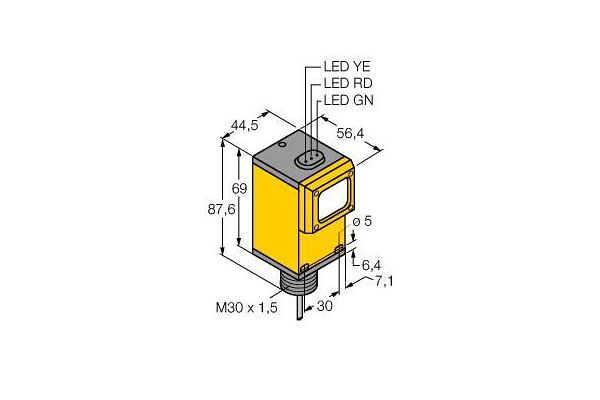

  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    56.4 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Other
  • Min. reflector distance
    600 mm
  • Ambient temperature
    -10 - 40 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Laser protection class
    Class 2
  • Wavelength of the sensor
    655 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-44908-11ec47bf81feff2debbe278c950b2f39.pdf (PDF, 1.09 MB)
