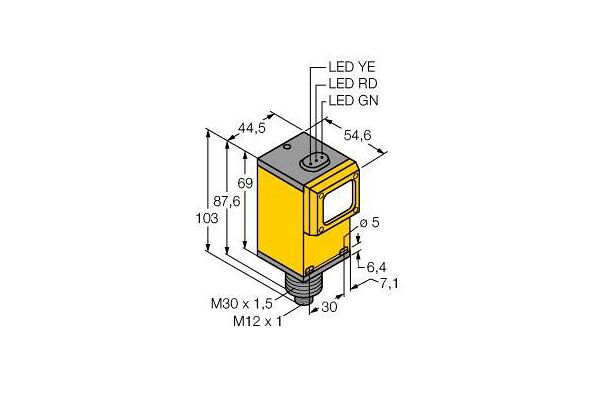

Q45BB6LPQ5 Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Q45BB6LPQ5

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 6000 mm, Male M12 × 1, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation, adjusted via switch

  • SKU
    0662488386665
  • Manufacturer code
    3038666
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • With reflector
    true
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    53.3 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP/NPN

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-47294-c924ac3494fa49af83d1add0ea55a963.pdf (PDF, 501.97 kB)
