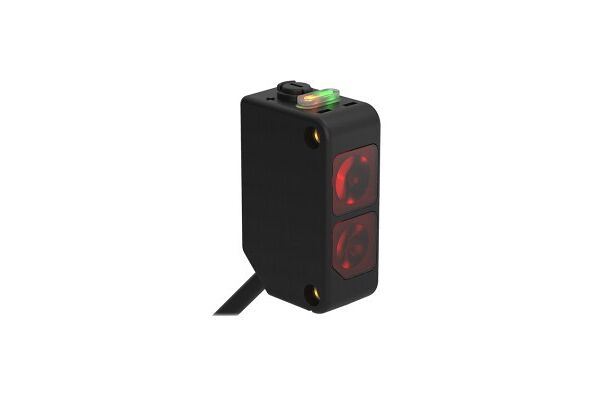

Q20PLP W/30 Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Q20PLP W/30

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 4000 mm, Cable length 9 m, Cable, PVC, 9 m, Protection class IP67, LED, all-round visible, Sensitivity adjusted via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488777876
  • Manufacturer code
    3077787
  • Rated switching distance
    4000 mm
  • Max. switching distance
    4000 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    12 mm
  • Height of sensor
    32 mm
  • Length of sensor
    20 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    0.8 s
  • Switching frequency
    600 Hz
  • Wavelength of the sensor
    645 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-45561-42589d5e143780d631a54054fde4a525.pdf (PDF, 525.93 kB)
