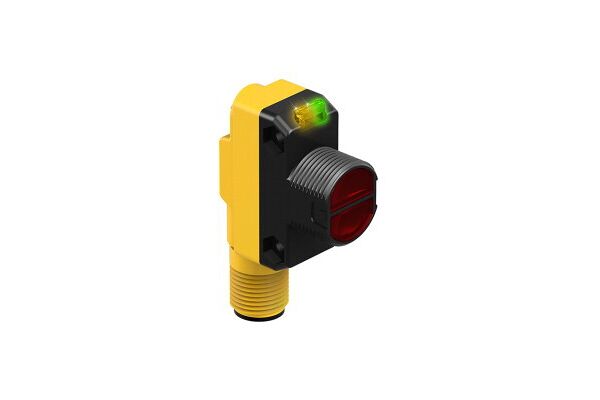

QS18VP6LLPQ8 Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter

QS18VP6LLPQ8

Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 10000 mm, Male M12 × 1, 4-pin, Protection class IP67, LED, all-round visible, Sensitivity adjusted via potentiometer, Microprism reflector BRT-51X51BM recommended for ranges up to 10 m and self-adhesive reflector film BRT-TVHG-2X2 for ranges up to 1.5 m; included in scope of delivery, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488732462
  • Manufacturer code
    3073246
  • Rated switching distance
    10000 mm
  • Max. switching distance
    10000 mm
  • With reflector
    true
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

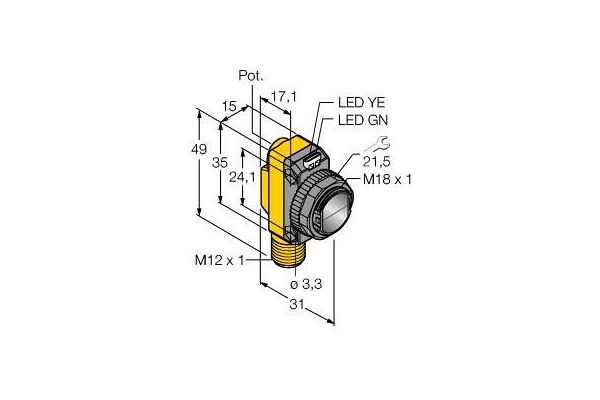

  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    31 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Laser protection class
    Class 1
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
