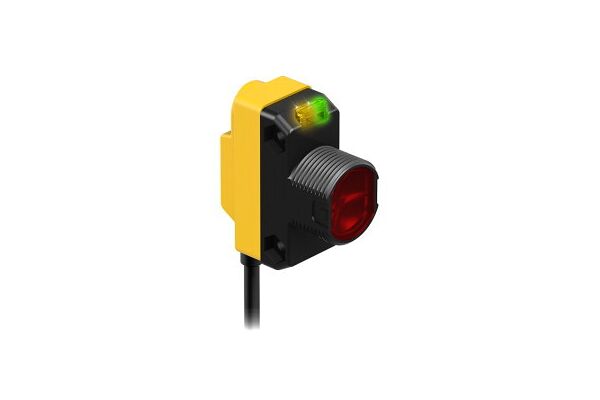

QS18VP6LLPQPMA Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter

QS18VP6LLPQPMA

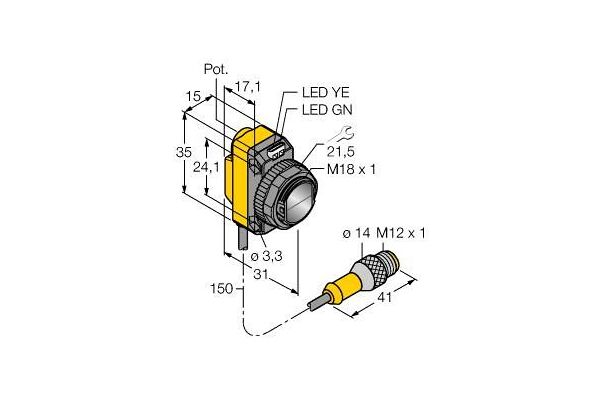

Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 10000 mm, Cable length 0.15 m, Cable with male end, M12 × 1, 4-pin, PVC, 150 mm, Protection class IP67, LED, all-round visible, Sensitivity adjusted via potentiometer, Microprism reflector BRT-51X51BM recommended for ranges up to 10 m and self-adhesive reflector film BRT-TVHG-2X2 for ranges up to 1.5 m; included in scope of delivery, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488734251
  • Manufacturer code
    3073425
  • Rated switching distance
    10000 mm
  • Max. switching distance
    10000 mm
  • With reflector
    true
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    31 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Laser protection class
    Class 1
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Type of switching output
    PNP
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-41001-694f70b7d107a5eb4dde628474f88515.pdf (PDF, 699.72 kB)
