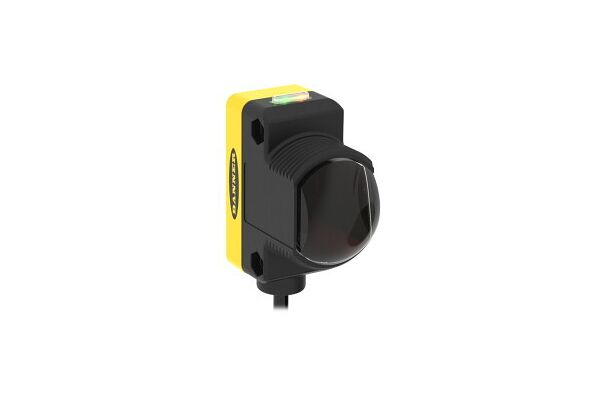

QS30LLP Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

QS30LLP

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 10…30 VDC, Max. range 18000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Compact design, Rectangular profile, LED all-round visible, Reflector BRT-36X40BM included in delivery, Self-adhesive reflector foil BRT-THVG-2X2 included in delivery, Excess gain, max. setting for long range, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488029937
  • Manufacturer code
    3002993
  • Rated switching distance
    18000 mm
  • Max. switching distance
    18000 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    49 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.5 s
  • Switching frequency
    1000 Hz
  • Laser protection class
    Class 1
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Manual adjustment
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-38157-9f7da3ec6e52e62dae48e7c04cd094f9.pdf (PDF, 765.52 kB)
