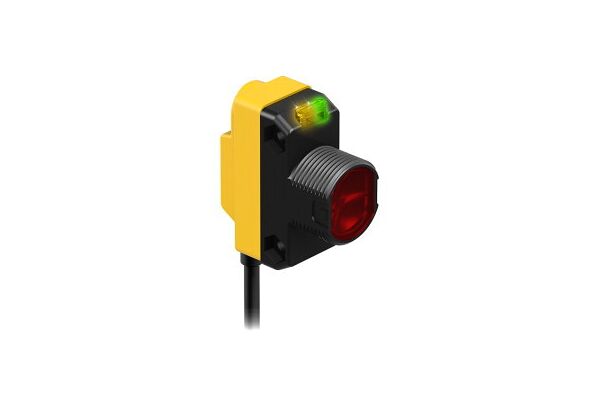

QS18EP6XLPC Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter for Clear Ob

QS18EP6XLPC

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter for Clear Object Detection, Operating voltage 10…30 VDC, Max. range 3000 mm, Cable length 2 m, Cable, PVC, 2 m, 4-wire, Protection class IP67, LED, all-round visible, Coaxial optics, Sensitivity adjusted via teach button, Operating voltage: 10…30 VDC, PNP switching output, Light or dark operation

  • SKU
    0662488976361
  • Manufacturer code
    3097636
  • Rated switching distance
    3000 mm
  • Max. switching distance
    3000 mm
  • With reflector
    false
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

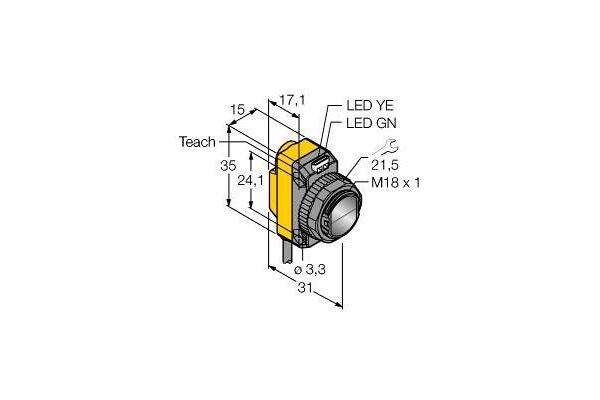

  • Width sensor
    15 mm
  • Height of sensor
    35 mm
  • Length of sensor
    31 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    0.4 s
  • Switching frequency
    833 Hz
  • Wavelength of the sensor
    625 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    18 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-36225-26d652ff55064139a0d5aa8350f0fd33.pdf (PDF, 583.49 kB)
