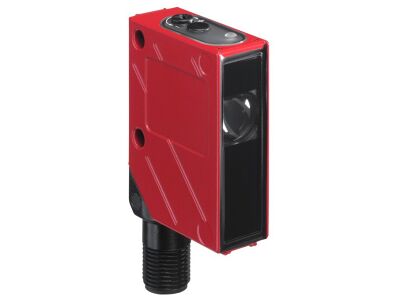

A luminescence sensor with an autocollimation feature designed for precise detection.

SKU

2110-50041840
Manufacturer code

50041840
Lamp type

UV LED
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
Type of electric connection

Connector M12
Number of semiconductor outputs with signalling function

2
Number of contact energized outputs with signalling function

0
Type of switching output

PNP
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 2
Width sensor

15 mm
Height of sensor

48 mm
Length of sensor

38 mm
Setting procedure

Other
Type of frequency band of the receiving spectrum

Other
Construction type housing

Cuboid
Type of light

Other
Light dot

22 mm²
With fibre optics connection

false
Nominal operating distance

150 mm
Switching frequency

1500 Hz
Degree of protection (IP)

IP67
Voltage type

DC
DC
DC
DC
Ambient temperature

-20 - 60 °C
With exchange lens

false
Material of optical surface

Glass
Housing material

Other
Metal
With time function

false
Most suitable applications

Situations requiring precise detection of luminescence.
Special version

Autocollimation
Supplyoltage (V)

10 ... 30
