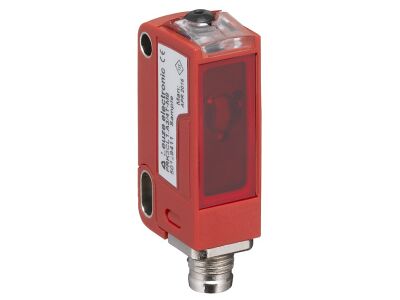

PRK3C.BA3/2N Polarized retro-reflective photoelectric sensor

PRK3C.BA3/2N
A polarized retro-reflective photoelectric sensor with autocollimation for precise detection.
  • SKU
    2110-50145519
  • Manufacturer code
    50145519
  • Pre failure notice
    false
  • With time function
    false
  • Rated switching distance
    4000 mm
  • Max. switching distance
    4000 mm
  • Max. output current
    100 A
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Number of semiconductor outputs with signalling function
    2
  • Number of protected semiconductor outputs
    0
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Other
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Width sensor
    11.4 mm
  • Height of sensor
    34.2 mm
  • Length of sensor
    18.3 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Plastic
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Min. reflector distance
    0 mm
  • Ambient temperature
    -40 - 60 °C
  • Response time
    0.33 s
  • Switching frequency
    1500 Hz
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Laser protection class
    None
  • Wavelength of the sensor
    635 nm
  • Type of light
    Polarity free red light
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    Other
  • Setting procedure
    Teach-In
  • Most suitable applications
    Detection tasks requiring precise light switching and dark switching capabilities.
  • Special version
    Autocollimation
  • Supplyoltage (V)
    10 ... 30
  • Construction type housing
    Cubic
  • Ambient temperature, operation (°C)
    -40 ... 60
  • Operating range limit (m)
    0 ... 5
  • Operational controls
    Teach button
  • Manufacturer Leuze

Product attachments

DS_PRK3C-BA3-2N_eng_50145519 (LINK)
