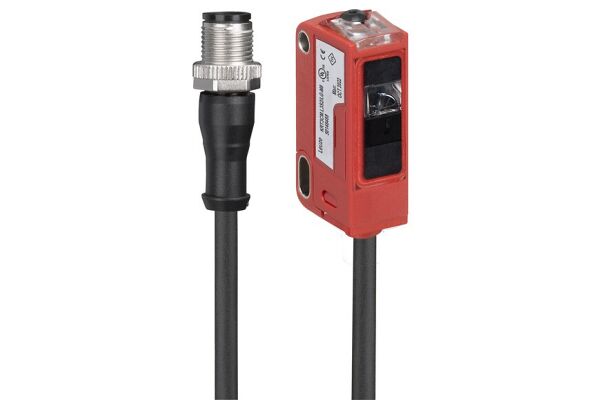

KRT3CW.L3S1/4T-200-M12 Contrast sensor

KRT3CW.L3S1/4T-200-M12
Compact contrast sensor with a teach input and time function.
  • SKU
    50148510
  • Manufacturer code
    50148510
  • Number of semiconductor outputs with signalling function
    1
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 3
  • Rated control supply voltage DC
    12 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    11.4 mm
  • Height of sensor
    34.2 mm
  • Length of sensor
    18.3 mm
  • Setting procedure
    Teach-In
  • Construction type housing
    Cuboid
  • Laser protection class
    Other
  • No-load current
    0 mA
  • Type of light
    White light
  • With fibre optics connection
    false
  • Switching frequency
    10000 Hz
  • Degree of protection (IP)
    Other
  • Ambient temperature
    -40 - 60 °C
  • With exchange lens
    false
  • Material of optical surface
    Plastic
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • With time function
    false
  • Max. output current
    100 A
  • Special version
    Teach input
    Time function
  • Supplyoltage (V)
    12 ... 30
  • Switching frequency (Hz)
    10000
  • Operational controls
    Teach button
  • Operating range (m)
    0.0145

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_KRT3CW-L3S1-4T-200-M12_eng_50148510 (LINK)
