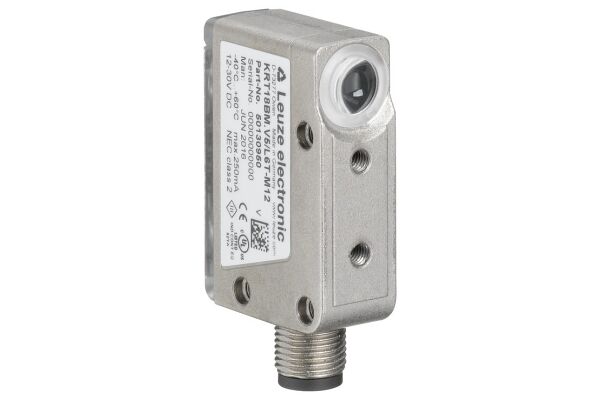

A compact contrast sensor with a robust metal housing, featuring a versatile RGB LED light source and adaptable switching options.

SKU

50146156
Manufacturer code

50146156
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

1
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Type of switch function

Anticoincidence
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

15 mm
Height of sensor

47 mm
Length of sensor

32.5 mm
Setting procedure

Manual adjustment
Construction type housing

Cuboid
Laser protection class

Other
No-load current

0 mA
Type of light

Multi-coloured LED
With fibre optics connection

false
Switching frequency

15000 Hz
Degree of protection (IP)

Other
Ambient temperature

-40 - 60 °C
With exchange lens

false
Material of optical surface

Plastic
Housing material

Other
Metal
With time function

false
Most suitable applications

Detecting contrast differences in industrial automation Color marking detection in packaging lines
Supplyoltage (V)

12 ... 30
Switching frequency (Hz)

15000
Operational controls

Multiturn potentiometer
Analog outputs

1
Analog output

Voltage
Operating range (m)

0.013

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
