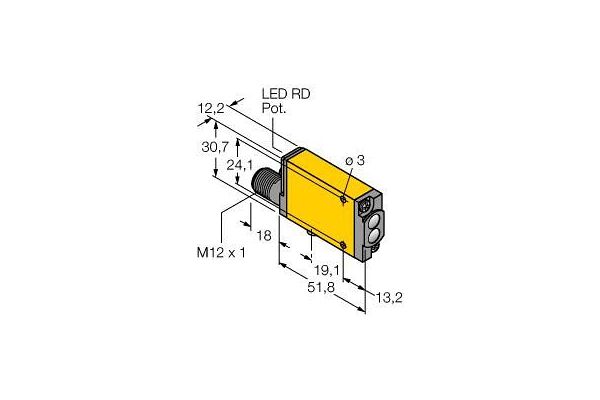

MIAD9WQ Photoelectric Sensor, Diffuse Mode Sensor

MIAD9WQ

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 5…15 VDC, Max. range 75 mm, M12 × 1 connector, 4-pin, Degree of protection IP67, Sensitivity adjustable via potentiometer, Alignment indicator, Operating voltage: 5…15 VDC (NAMUR), NAMUR output in accordance with DIN 19234 (IEC/EN 60947-5-6), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488352332
  • Manufacturer code
    3035233
  • Type of electric connection
    Connector M12
  • Type of switching output
    NAMUR
  • Type of switch function
    Other
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 1G
  • Construction type housing
    Cuboid
  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    69.8 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    5 s
  • Switching frequency
    100 Hz
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    75 mm
  • Housing material
    Plastic
  • Atex category
    ATEX category II 1 G

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-42260-b5537aaeac4f43cae4ae8124346fa050.pdf (PDF, 667.7 kB)
