Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 10…30 VDC, Max. range 25 mm, Cable length 0.15 m, Cable with male end M12 × 1, 4-pin, PVC, 150 mm, Protection classes IP67 / IP68, Metal housing, LED all-round visible, Indication of insufficient excess gain, Operating voltage: 10…30 VDC, PNP switching output, complementary contact

SKU

0662488782443
Manufacturer code

3078244
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Changeover contact (NO/NC)

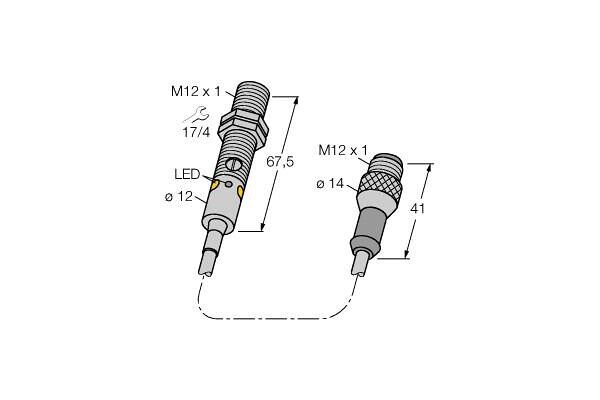

Length of sensor

67.5 mm
Material of optical surface

Plastic
Ambient temperature

-20 - 60 °C
Response time

0.5 s
Switching frequency

1000 Hz
Wavelength of the sensor

680 nm
Type of light

Polarity free red light
Suitable for safety functions

false
Degree of protection (IP)

IP67
Setting procedure

Other
Material of cable sheath

Polyvinyl chloride (PVC)
Rated switching distance

25 mm
Max. switching distance

25 mm
Diameter sensor

12 mm
Adjustment range

0 - 25 mm
Housing material

Metal
Type of switching output

PNP
Connector gender

male
Cable length (m)

0.15

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
Need our help?

or call us at

An inquiry about M12PFF25Q5

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

file-37366-1d61367009e6372a23cf11da87939dff.pdf (PDF, 412 kB)
