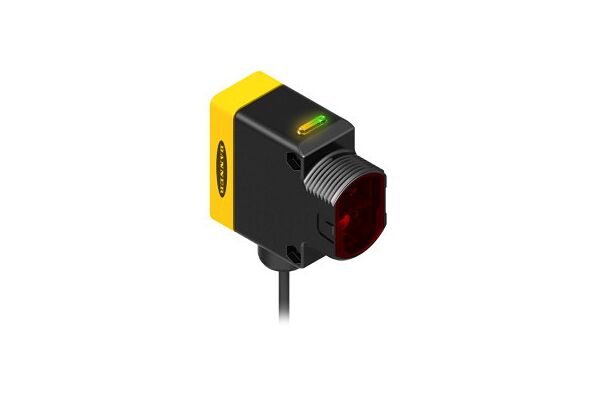

QS30AFQPMA Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression

QS30AFQPMA

Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 300 mm, Cable length 0.15 m, Cable with male end M12 × 1, 5-pin, PUR, 150 mm, Protection class IP67, LED, all-round visible, Cut-off point adjusted via teach button, Operating voltage: 10…30 VDC, Switching output, bipolar, Light or dark operation

  • SKU
    0662488721015
  • Manufacturer code
    3072101
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid

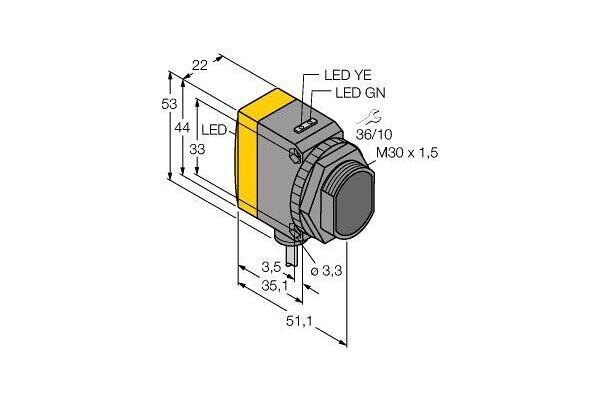

  • Width sensor
    22 mm
  • Height of sensor
    53 mm
  • Length of sensor
    35 mm
  • Sensing mode
    Light switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 55 °C
  • Response time
    1 s
  • Switching frequency
    500 Hz
  • Wavelength of the sensor
    660 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyurethane (PUR)
  • Rated switching distance
    300 mm
  • Max. switching distance
    300 mm
  • Diameter sensor
    30 mm
  • Adjustment range
    50 - 300 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
